Covered by one or more of the following U.S. Patents:
 5,330,064; 5,386,787;
5,456,191; 5,471,922;
 5,483,782; 5,503,087;
 5,628,522; 5,746,063;
 5,765,386; 5,816,051;
5,931,018; 5,957,309;
 6,062,401; 6,131,399;
 6,149,120; 6,173,575;
6,322,180; 6,366,313;
 6,419,098; 6,474,757;
 6,974,042; 7,419,063;
D480,528; D481,513;
& Canadian patent 2,169,336. Other U.S. & foreign patents pending.

Commercial quality-- at an affordable price!

.

FEATURES:

Patented hybrid construction offers the durability of stainless steel with the

.

.

.

.

affordability of aluminum

N-FRAME® and Z-FRAME Nesting Racks® are fully TIG-welded, so runner welds won’t break

Aluminum runners have EZ Glide ribs for smooth loading and unloading
corner1a

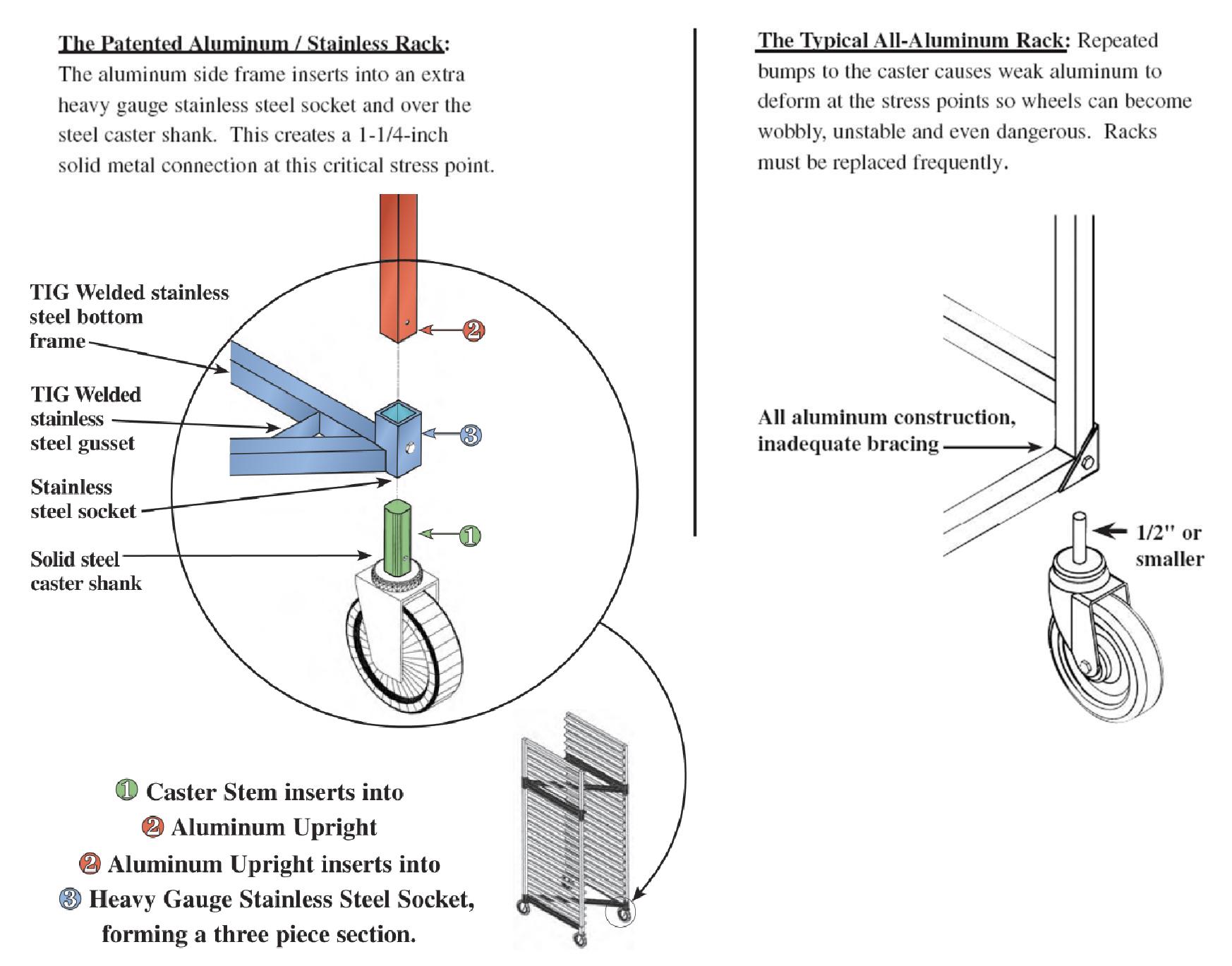

Heavy gauge stainless steel sockets surround the caster stem and uprights, preventing tearing

Ball bearing swivel and hi-temp stem casters offer extended durability and smooth mobility
CasterComparison

.

.

.

.

BENEFITS:

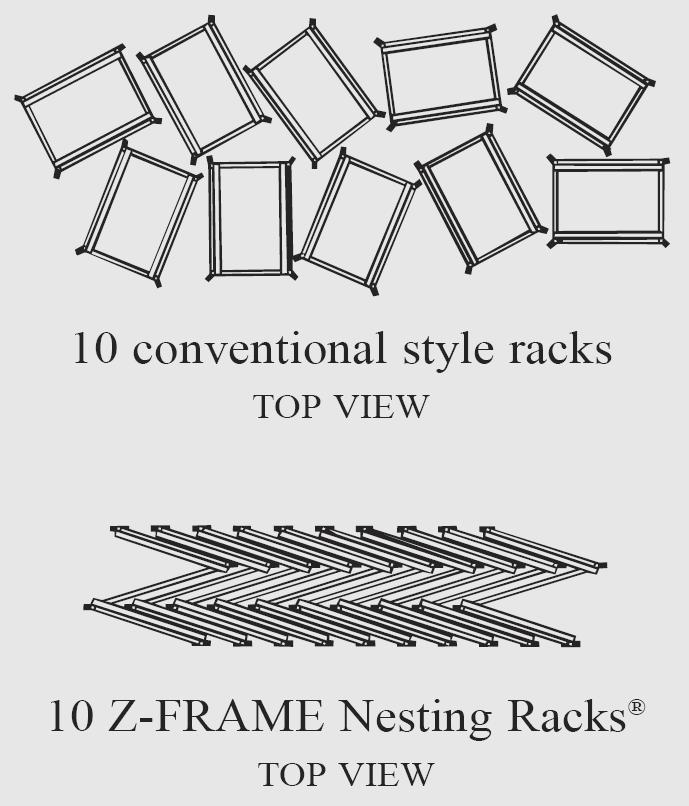

N-FRAME® and Z-FRAME Nesting Racks® use only 50% of the space required by old fashioned non-nesting racks-- (21) Nesting Racks fit in the space of (10) non-nesting racks

Multiple units are shipped “nested” for freight savings

When nested, N-FRAME® and Z-FRAME Nesting Racks® can move as a continuous group

Will withstand a 500 lb. side impact without sustaining damage
nesting1

For important information on our nesting OVEN rack patents, click here.
